When a product requires more than a flat piece of foam, conventional cutting, lamination or CNC machining may not be enough. For products with complex 3D geometry, curved surfaces, integrated cushioning structures or a seamless molded appearance, EVA injection molding provides another manufacturing solution.

At SHUNHO PEG LIMITED, we work with customers to develop customized EVA foam products from material selection and prototyping through tooling and mass production.

What Is EVA Injection Molding?

EVA injection molding is a manufacturing process used to produce three-dimensional foamed components from EVA-based compounds.

Unlike conventional EVA sheet fabrication, where finished parts are cut or machined from pre-foamed sheets, injection molding forms the foam and the final 3D geometry during the molding process.

The prepared EVA compound is heated and injected into a precision mold. Under controlled temperature and pressure, the material undergoes crosslinking and foaming. When the mold opens, the molded part expands and is subsequently cooled and stabilized to achieve its intended shape and dimensions.

This process makes it possible to manufacture seamless, lightweight and flexible molded foam components with complex geometries that can be difficult to achieve through conventional foam fabrication.

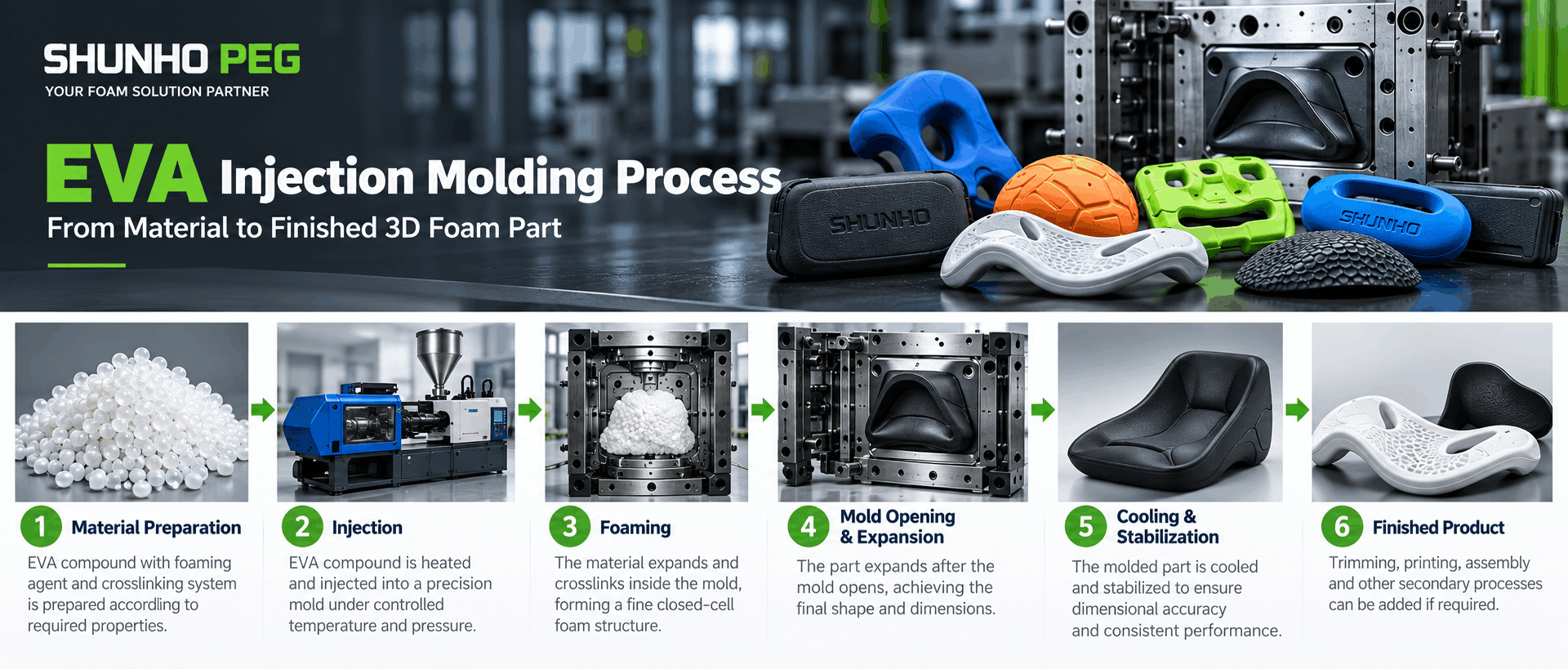

How Does the EVA Injection Molding Process Work?

1. Material & Compound Selection

The EVA formulation is selected according to the required hardness, density, resilience, flexibility, color and other performance requirements.

2. Product & Tooling Design

The 3D geometry is reviewed for moldability, including wall thickness, draft angles, parting lines, surface details and expected expansion or shrinkage.

3. Injection & Foaming

The EVA compound is heated and injected into the mold. Heat activates the crosslinking and foaming system, creating the cellular foam structure

4. Mold Opening & Expansion

Unlike conventional solid plastic injection molding, the molded EVA foam expands after the mold opens. This expansion behavior must be considered during both material formulation and tooling design.

5. Cooling & Stabilization

The molded component is cooled and stabilized to control its final dimensions and geometry.

6. Finishing & Assembly

Depending on the product, secondary processes can include trimming, printing, laser marking, bonding, Velcro attachment or other assembly operations.

Why Choose EVA Injection Molding?

Lightweight

The cellular foam structure significantly reduces weight compared with many solid elastomer or plastic components.

Flexible & Resilient

EVA can provide a combination of softness, flexibility, cushioning and shape recovery, making it particularly useful where comfort or impact absorption is important.

Closed-Cell Structure

EVA foam can provide low water absorption and is well suited to many products exposed to moisture or frequent cleaning, subject to the selected formulation and product design.

Complex 3D Geometry

Curved surfaces, ergonomic shapes, recesses, ribs, varying thicknesses and other three-dimensional features can be integrated directly into the molded component.

Integrated Surface Design

Textures, patterns, recessed or raised lettering and logos can often be incorporated directly into the mold rather than added as separate components.

Customizable Material Properties

Depending on the formulation and product requirements, properties such as hardness, density, flexibility, resilience and color can be adjusted.

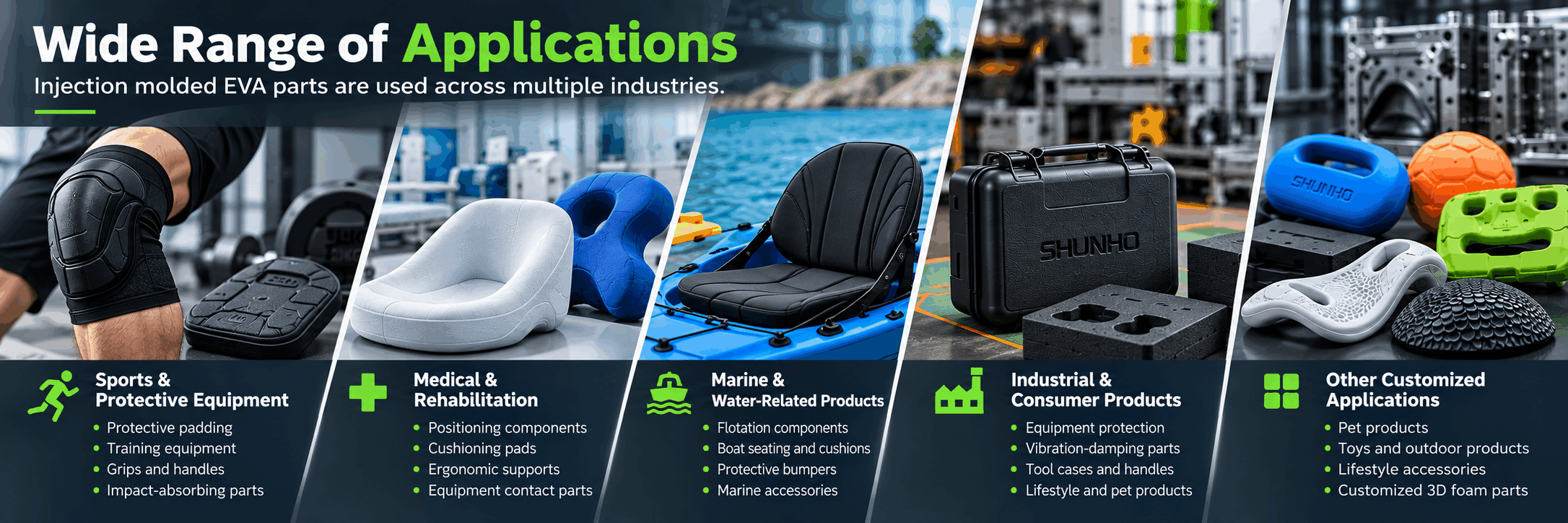

Typical Applications of Injection Molded EVA Foam

One of the advantages of EVA injection molding is that the process is not limited to footwear. Its combination of cushioning, flexibility, low weight and three-dimensional design capability makes it suitable for a wide range of customized products.

Sports & Protective Equipment

·         Protective padding

·         Shoulder and body cushioning components

·         Training equipment

·         Grips and handles

·         Impact-absorbing components

Medical & Rehabilitation Products

·         Positioning components

·         Cushioning pads

·         Ergonomic supports

·         Equipment contact surfaces

·         Patient-comfort components

Marine & Water-Related Products

·         Flotation components

·         Protective bumpers

·         Seating or cushioning components

·         Molded marine accessories

Industrial & Equipment Protection

·         Equipment bumpers

·         Vibration-damping components

·         Protective covers

·         Ergonomic components

·         Specialized equipment protection

Consumer Products

·         Pet products

·         Toys

·         Handles

·         Protective accessories

·         Lifestyle products and other custom 3D foam products

EVA Injection Molding vs. EVA Compression Molding

The right process depends on the product geometry, material requirements, expected volume and target cost.

At SHUNHO PEG, we evaluate the product rather than simply recommending one process. Some projects are better suited to CNC machining, compression molding or thermoforming, while others benefit significantly from EVA injection molding.

From Concept to Mass Production

Developing a successful injection-molded EVA product requires more than simply building a mold. Material formulation, foam expansion, shrinkage, geometry, surface appearance and tooling design all influence the final product.

Product Requirement  →  Material Selection  →  Prototype Evaluation  →  DFM Review  →  Tooling  →  Mold Trial  →  Sample Approval  →  Mass Production

Customers can provide a 3D CAD file, 2D drawing, physical sample or even an initial product concept. Our team can then evaluate the appropriate EVA material and manufacturing process for the application.

Looking for a Custom EVA Injection Molding Solution?

If you are developing a product that requires a lightweight, flexible, shock-absorbing or water-resistant 3D foam component, EVA injection molding may be worth considering.

Send us your drawing, 3D model, sample or product concept. Our team can review the application and help determine whether EVA injection molding is the right manufacturing process.
